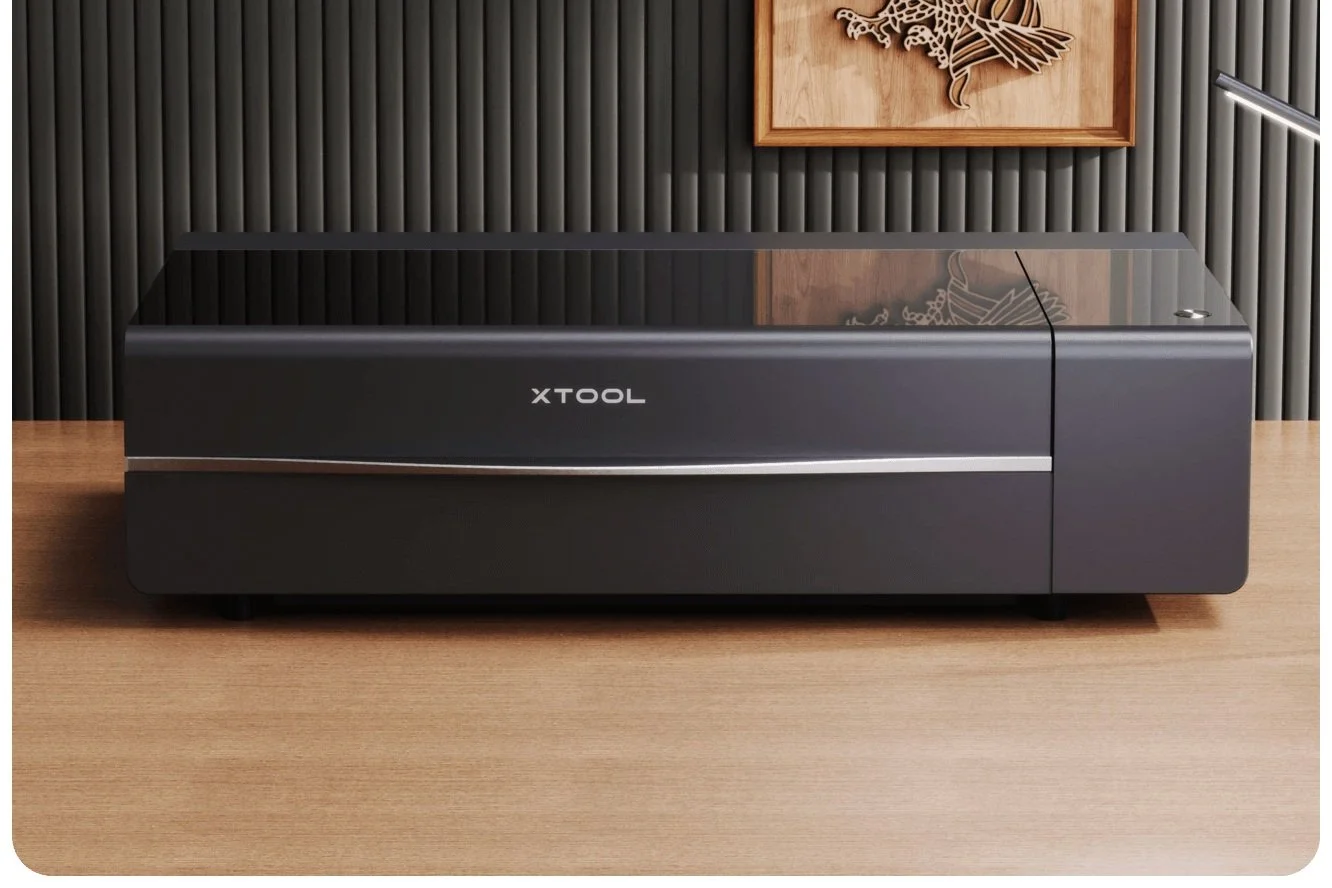

Xtool P2 55W Desktop CO2 Laser Cutter

  • All round Protection

    ALL ROUND PROTECTION

  • EXPERIENCE SUPERB POWER & SPEED

    EXPERIENCE SUPERB POWER & SPEED

  • SMART PRODUCTION STARTS HERE

    SMART PRODUCTION STARTS HERE

Information

  • As a smart CO2 laser cutter and engraver machine, xTool P2 has ultra-high absorption efficiency on most materials, perfect for cutting acrylic of all color, wood, leather, MDF, rubber, fabric, engrave on glass, ceramic, slate, coated metal, anodized aluminum, and more

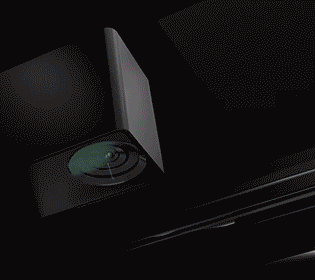

  • Thanks to the dual 16MP smart cameras, xTool P2 CO2 laser engraver can automatically construct 3D models of curved objects to make curved surface engraving as perfect as flat, can intelligently recognize shapes to fill pattern on multiple objects and engrave them in one batch. If assembled with the Automatic Conveyor Feeder, xTool P2 also provides the automatic passthrough for precision and convenience when engraving and cutting extra-large materials.

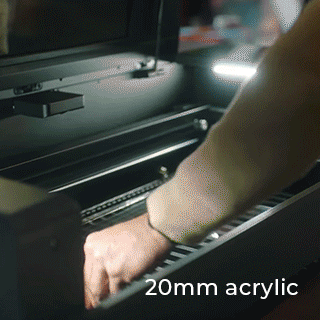

  • Description text goes herexTool P2 Desktop CO2 laser cutter has a powerful 55W laser tube that allows you to cut 18mm black walnut and 20mm acrylic in only one pass. 3mm basswood can be surprisingly cut at the speed of 35mm/s, 6 times faster than a 20W diode laser. Assembled with a superior motor, the sturdy xTool P2 makes it possible to engrave at an ultrafast speed of 600mm/s.

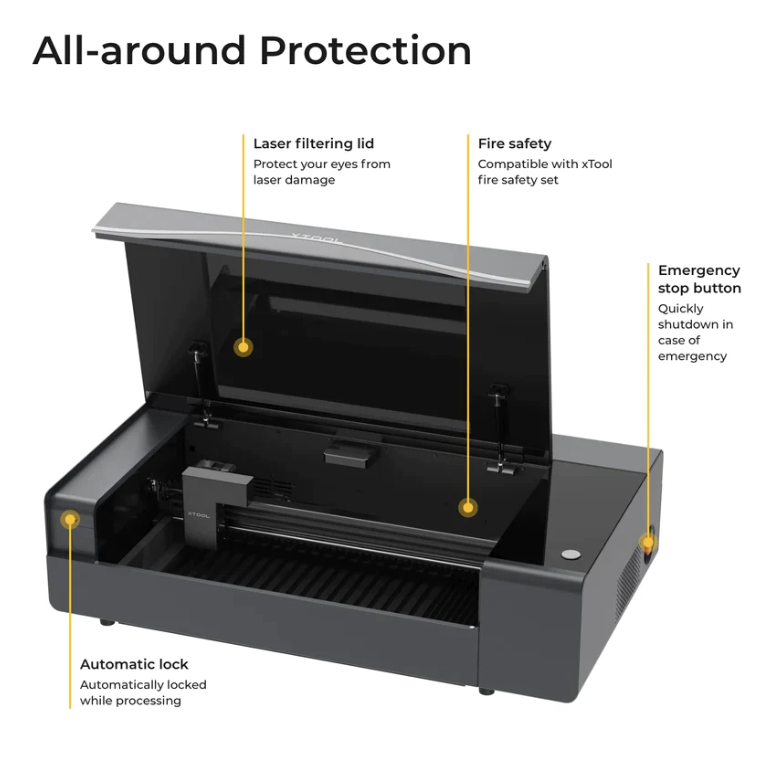

  • Enclosed in design, xTool P2 is equipped with automatic lock, emergency stop button, hydraulic support, fire safety, and multiple warning systems to provide all-around protection for you. With the built-in adjustable air assist and slats, you can unquestionably trust P2's excellent smoke exhaust system including the 145CFM exhaust fan, which can effortlessly distance the materials from annoying smoke.

  • The 26"×14" large bed size and 2.7” maximum engraving height enrich you with even more possibilities for creations. If with the help of the Riser Base, you can easily engrave on 8.4" objects. Moreover, P2 is also Compatible with RA2 Pro rotary attachment to unleash your creativity on tumblers, mugs, spheres and rings.

Specifications

GENERAL

Machine: CNC Machine

Technology: Laser Cutter / Laser Engraver

Assembly: Fully-Assembled

Machine Dimensions
(W × D × H)39.4"×25.1"×10.6"
1000mm×639mm×268mm

Product Weight: 45kg

LASER

Laser Type: CO2

Laser Module Output:55W

Laser Spot: 0.15×0.2mm

Lifespan6000~8000h

CUTTING / ENGRAVING PARAMETERS

Bed Size (L × W): 26.7''×14.1'' (680×360mm)

Work Area (L × W): 23.6''×12.1'' (600×308mm)Max Workpiece Height
with Tray: 2.5" (64mm)
without Tray: 2.7" (71mm)
with Riser Base - 8.5" (215mm)

Engraving Speed: 600mm/s

Processing Precision: 0.01mm

Z-axis Movement:3" (75mm)

Rotary Engraving Diameter
(Add-on Required): with Riser Base: 0 - 180mm
without Riser Base: 3 - 50mm

Safety Guard: Class IV (FDA Certified)

Enclosed: Yes

Camera Built-In

Water-Cooling System: Built-In; Capacity: 1.4L (0.37gal)

Air AssistBuilt-In; Adjustable 15 - 150Kpa

Exhaust Fan145CFM

Automatic Lock: Yes

Emergency Stop Button: Yes

Warning Systems: Yes

Rotary Engraving: Yes (with add-on)

Smoke Purifier: Yes (with add-on)

Cuttable Materials CO2 Laser: Paper, Wood, Acrylic, Leather,
Cardboard, MDF, Felt, Rubber

Engravable Materials CO2 Laser: Paper, Wood, Acrylic, Leather,
Cardboard, MDF, Felt, Rubber, Bamboo, Fabric,
Glass, Ceramic, Jade, Marble, Shale, Cement,
Brick, Plated metal, Painted metal

SOFTWARE

Software: xTool Creative Space, LightBurn

OS CompatibilityWindows / macOS / iPadOSSupported File FormatSVG, DXF, JPG, JPEG, PNG, BMP

CAMERA

Camera Type(s)Panoramic Camera, Close-Range Camera

Number of Pixels (Effective):16MP×2

Vision Precision0.3mm

Image Resolution1000DPI

Focus ModeAutofocus

COMMUNICATION

Connectivity, Wi-Fi, USB, Ethernet

TEMPERATURE

Operating Ambient Temperature: 10 - 30°C (10 - 86°F)

Storage Temperature: 10 - 45°C (50 - 113°F)
*If the temperature drops below 10°C (50°F),
please add antifreeze under the guidance in
the user manual.

PACKAGING DIMENSIONS

Packaging Dimensions (W × D × H): 44.4"×28.6"×13.6" (1122mm×727mm×346mm)

WARRANTY

Warranty Period:12 Months
